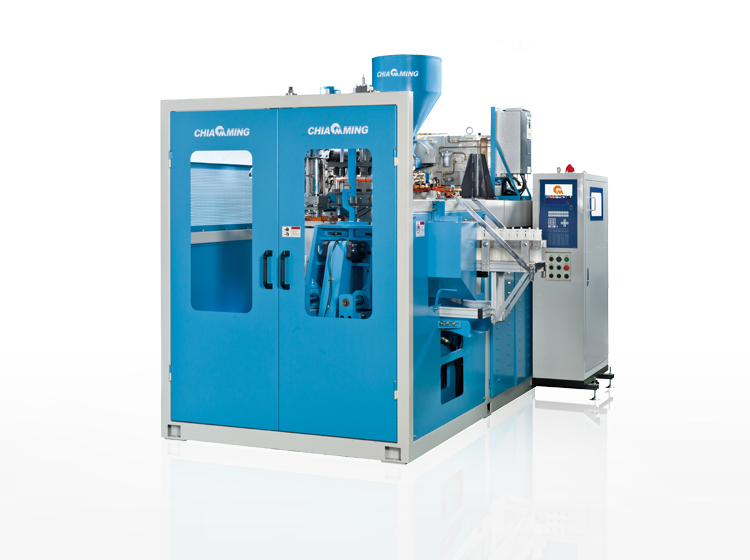

CM-S/D/T/F H Series Continuous Extrusion Blow Molding Machine
Continuous Extrusion Blow Molding Machine
CM-S/D/T/F H Series - Extrusion Blow Molding Machine
CM - 45, 55, 65, 75, 90 S/D/T/F H
This series is a single station extrusion blow molding machine for containers from 50ml to 20L. These machines exhibit high reliability, excellent efficiency and flexibility to meet varied customer requirements.
| CM-S/D/T/F H Series | |
|---|---|
| bottle capacity | Output BPH(pcs/hr) |
| <300ml | <1000 |
| 300ml~500ml | <1000 |
| 500ml~1L | <1000 |
| 1L~2.5L | <1000 |
| 2.5L~5L | <400 |
| 5L~10L | <400 |
| 10L~25L | <200 |
- Screw design according to customer requirements. Screw and barrel are made of special steel and undergo nitrifying.
- The special structure of extruder and the vertical and longitudinal adjustment of the flat-table are adjusted automatically. Blow nozzle post is also auto adjust and equipped with a water cooling device.
- Specially designed hydraulics, circuiting, and accuracy of moulding movement & positioning.
- A parison parameter controller is also available for auto thickness adjusting.
- Auto bottom mould release and auto circular jar cutter are also available.
- Independent electrical cabinet, reduced vibration and computer control are according to customer request.
| Model | CM-45SH | CM-55SH | CM-65SH | CM-75SH | CN-90SH | CM-45DH | CM-55DH | CM-65DH | CM-75DH | CM-90DH | CM-55FH | CM-65FH | CM-75FH | CM-90FH | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | Material to be Used | PE/PP | PE/PP | PE/PP | PE/PP | PE/PP | PE/PP | PE/PP | PE/PP | PE/PP | PE/PP | PE/PP | PE/PP | PE/PP | PE/PP | |
| Screw Diameter | mm | Ø45 | Ø55 | Ø65 | Ø75 | Ø90 | Ø45 | Ø55 | Ø65 | Ø75 | Ø90 | Ø55 | Ø65 | Ø75 | Ø90 | |
| L/D Ratio | 24/1 | 24/1 | 24/1 | 24/1 | 26/1 | 24/1 | 24/1 | 24/1 | 24/1 | 26/1 | 24/1 | 24/1 | 24/1 | 26/1 | ||
| Screw Speed Range (PE)/rpm | rpm | 15-85 | 20-80 | 20-80 | 20-75 | 20-65 | 15-85 | 15-65 | 15-65 | 15-65 | 15-65 | 15-65 | 15-65 | 15-65 | 15-60 | |
| Inverter Motor | HP | 10 | 15 | 20 | 30 | 60 | 10 | 15 | 20 | 30 | 50 | 20 | 30 | 40 | 50 | |
| Max. Extrusive Capacity/Hour | kgs | 25 | 37 | 60 | 78 | 105 | 25 | 37 | 60 | 78 | 105 | 37 | 60 | 78 | 105 | |
| Heating Zone (Barrel) | zone | 2 | 3 | 3 | 3 | 3 | 2 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | |
| Heating Capacity (Barrel) | kw | 3.9 | 7.2 | 10.8 | 12.6 | 25.2 | 3.9 | 7.2 | 10.8 | 12.6 | 25.2 | 7.2 | 10.8 | 12.6 | 25.2 | |
| Die head | Heating Zone (Diehead) | zone | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 5 | 5 | 5 | 5 | 5 | 9 |
| Heating Capacity (Diehead) | kw | 3.5 | 5.8 | 8 | 8.6 | 16.4 | 5.4 | 7.7 | 11.9 | 12.6 | 25.2 | 12 | 13 | 14.7 | 21.4 | |
| Double Mold Center Distance | mm | - | - | - | - | - | 120 | 130 | 140 | 160/180 | 200/220 | 100 | 100 | 100/120 | 120 | |
| Mold Plate | Max. Opening Stroke | mm | 350 | 410 | 550 | 610 | 840 | 350 | 410 | 550 | 610 | 635 | 410 | 550 | 610 | 570 |
| Min. Close Stroke | mm | 80 | 100 | 172 | 210 | 340 | 80 | 100 | 172 | 210 | 233 | 100 | 172 | 210 | 250 | |
| Mold Clamping Force | ton | 4 | 5.5 | 8 | 9 | 10.8 | 4 | 6 | 7.5 | 9 | 10.5 | 6 | 7.5 | 9 | 10.5 | |
| Hydraulic System | Hydraulic Pump Motor | HP | 7.5 | 10 | 15 | 20 | 25 | 10 | 10 | 15 | 20 | 25 | 10 | 15 | 20 | 25 |
| Hydraulic Oil Pressure | kg/cm2 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | |
| Oil Tank Capacity | gallon | 50 | 75 | 85 | 100 | 300 | 50 | 75 | 85 | 100 | 300 | 75 | 85 | 100 | 300 | |
| Product | Product Weight (Max.) | g | 100 | 170 | 280 | 430 | 1000 | 80 | 120 | 140 | 160 | 250 | 20 | 40 | 60 | 80 |
| Product Dia. (Min./Max.) | mm | 20-100 | 30-140 | 50-200 | 70-260 | 160-310 | 20-80 | 30-100 | 50-110 | 100-150 | 100-190 | 10-65 | 10-65 | 28-80 | 30-100 | |
| Product Capacity (Min./Max.) | ml | 250-1000 | 400-2500 | 800-5000 | 4000-10000 | 10000-20000 | 40-500 | 200-1000 | 500-2000 | 1000-3000 | 1500-5000 | 50-300 | 100-500 | 300-1000 | 300-1500 | |
| Total Power Consumption | kw | 24.2 | 35.4 | 48.6 | 62.2 | 108.7 | 22.4 | 37.3 | 52.6 | 66.3 | 110 | 45.5 | 62.3 | 72 | 106.3 | |
| Weight of Machine | ton | 3 | 4.5 | 5.5 | 6.5 | 8.5 | 4 | 4.5 | 6 | 7 | 8.5 | 4.8 | 6 | 7.5 | 9.5 | |
| * All Specifications and designs are subject to change without notice. * All models can be upgraded to hybrid or fully electric type by servo motor control. |
||||||||||||||||
