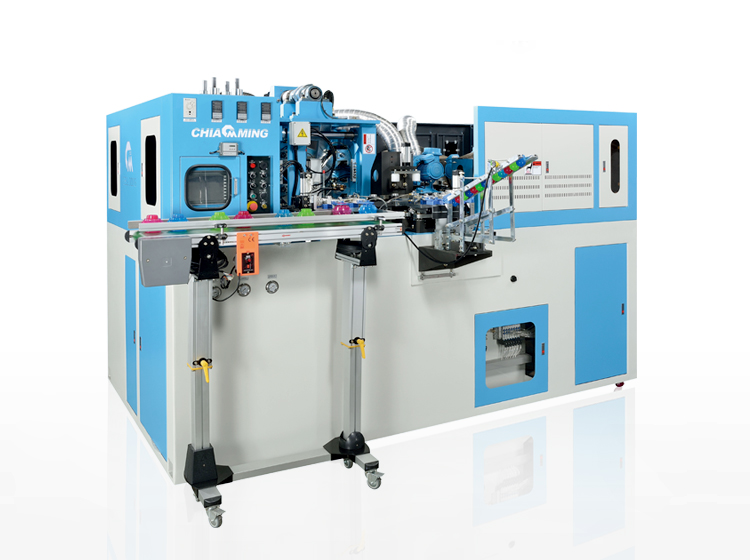

PET Automatic Stretch Blow Molding Machine

CMA(BS,BD) Series - for Small Mouth Jar / Container

CMA - 2000BS / 2000BD

This is a new generation of fully automatic and versatile machine for mass production of PET large volume bottles, oval bottles, flat bottles and jars with volumes up to approximately 2000ml. Ideally suitable for applications where stringent quality requirements have to be met. Suitable for clean lotion, edible oil, detergent, pickle food, etc.

Preform In-feed and Unscrambler

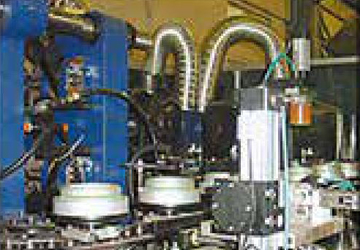

Preform Conveying System

Servo motor control makes delivery of preform to the mould very smooth and accurate.

ContainerMax. neck diametermm Ø28~Ø90
Max. production capacitypcs/hr 1200
Max. body diametermm 120
Max. container heightmm 320
Max. bottle capacityml 2000
No. of cavityno. 2
MouldCarry pitchmm 152.4
Mould center distancemm 152.4
No. of preform mandrelspcs 44
Heating ovenNo. of evenno. 3~4
No. of infrared heaters in each ovenno. 8
Heating load (max.)kw 38~52
Air pressureLow pressurekg/cm2 7
High pressurekg/cm2 35
Cooling waterCooling capacitykcal/h 18000
Water consumptionl/min 80
Water temperature°C 10~12
Pressurebar 5
Total consumption powerkw 42~56
Machine dimensionmm 3.5x1.9x2.2
Machine weightton 6.5
* All Specifications and designs are subject to change without notice.
* The production capacity refers to 500ml water bottles.
* CMA Series model can be upgraded to fully electricity type by servo motor control.
