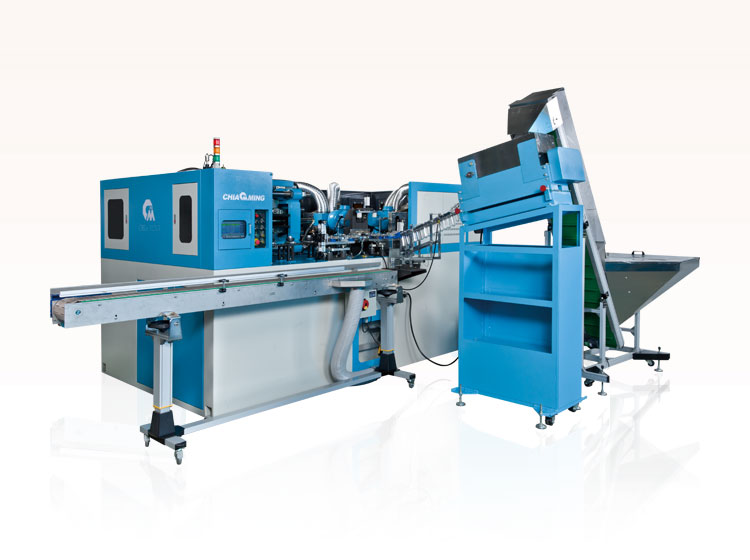

PET Automatic Stretch Blow Molding Machine

CMA(CS,CD) Series - for Wide Mouth Jar/Big Volumes Container

CMA - 2000CS / 2000CD

This is a new generation of fully automatic and versatile machine for mass production of PET large volume bottles, oval bottles, flat bottles and jars with volumes up to approximately 6000ml. Ideally suitable for applications where stringent quality requirements have to be met. Suitable for clean lotion, edible oil, detergent, pickle food, etc. Small & Medium Volume Bottles

Preform In-feed and Unscrambler

Preform Conveying System

Servo motor control makes delivery of preform to the mould very smooth and accurate.

ContainerMax. neck diametermm Ø63~Ø120
Max. production capacitypcs/hr 600 1200
Max. body diametermm 180 180
Max. container heightmm 340 340
Max. bottle capacityml 6000 6000
No. of cavityno. 1 2
MouldCarry pitchmm 228.6 228.6
Mould center distancemm 228.6 228.6
No. of preform mandrelspcs 28 38
Heating ovenNo. of evenno. 3 4
No. of infrared heaters in each ovenno. 9 9
Heating load (max.)kw 43 58
Air pressureLow pressurekg/cm2 7 7
High pressurekg/cm2 35 35
Cooling waterCooling capacitykcal/h 14000 18000
Water consumptionl/min 70 80
Water temperature°C 10~12 10~12
Pressurebar 5 5
Total consumption powerkw 45 62
Machine dimensionmm 3.45x1.9x2.2 4.5x2.25x2.2
Machine weightton 6.5 7
* All Specifications and designs are subject to change without notice.
* The production capacity refers to 500ml water bottles.
* CMA Series model can be upgraded to fully electricity type by servo motor control.
