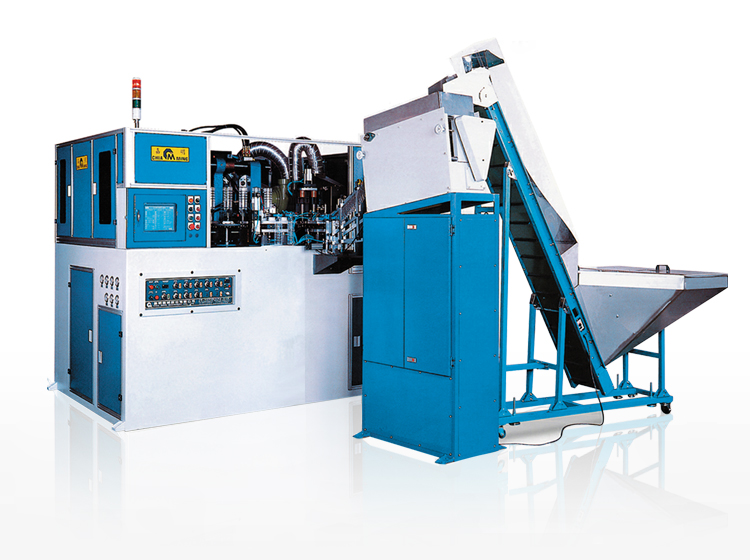

CMA(S) Series PET Automatic Stretch Blow Molding Machine
CMA(S) Series - for Bottle Volumes Less Than 1500ml
CMA - 2000 S / 3000 S / 4000 S / 6000 S
This is a new generation of fully automatic and versatile machine for mass production of PET bottles with volumes up to approximately 200 ~ 1500ml. Ideally suitable for large scale factories and for applications where stringent quality requirements have to be met. Substantial reduction in operating cost is achieved by saving of manpower.

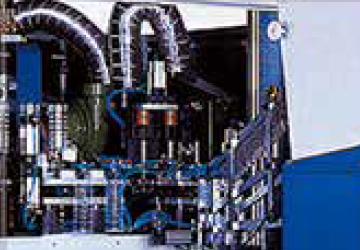

Preform In-feed and Unscrambler
Orientation and delivery of preforms is in an orderly fashion to the machine. Accurate position control of preform is achieved by pneumatic system.

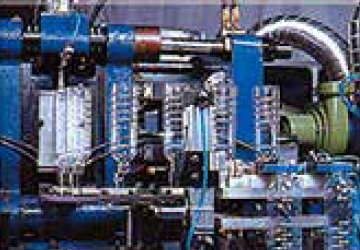

Bottle Discharge System
Bi-axially oriented bottles from the moulds are picked up by robotic arms and placed in an upright position. The in-line conveyor or leaks testing system are optional equipped.

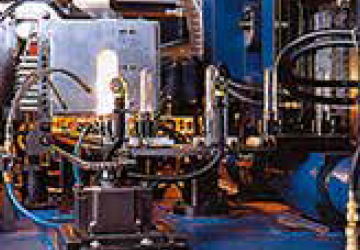

Preform Heating
Accurate temperature control of infrared heaters in various zones of the oven is achieved by electronic control. Rotation of preform holding mandrels enables the circumference of preform at each zone to be evenly heated.

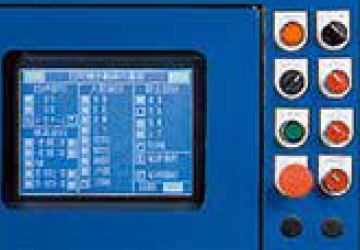

Touch Screen Control System
Computer touch screen communicates with the PLC. All actions of the machine can be seen on the screen. System has many sets of memories. The system diagnoses and displays the problems on the screen to make trouble shooting easier.
| Model | CMA-2000S | CMA-3000S | CMA-4000S | CMA-6000S | ||
|---|---|---|---|---|---|---|
| Container | Max. neck diameter | mm | Ø25~Ø38 | |||
| Max. production capacity | pcs/hr | 1440~2000 | 2160~3000 | 2880~4000 | 4320~6000 | |
| Max. body diameter | mm | 95 | ||||
| Max. container height | mm | 320 | ||||
| Max. bottle capacity | ml | 1500 | ||||
| No. of cavity | no. | 2 | 3 | 4 | 6 | |
| Mould | Carry pitch | mm | 114.3 | |||
| Mould center distance | mm | 114.3 | ||||
| No. of preform mandrels | pcs | 40 | 62 | 76 | 96 | |
| Heating oven | No. of even | no. | 2 | 4 | 4 | 6 |
| No. of infrared heaters in each oven | no. | 8 | ||||
| Heating load (max.) | kw | 25.6 | 52 | 52 | 76.8 | |
| Air pressure | Low pressure | kg/cm2 | 7 | |||
| High pressure | kg/cm2 | 35 | ||||
| Cooling water | Cooling capacity | kcal/h | 14000 | 18000 | 24000 | 24000 |
| Water consumption | l/min | 70 | 80 | 80 | 80 | |
| Water temperature | °C | 10~12 | ||||
| Pressure | bar | 5 | ||||
| Total consumption power | kw | 28 | 56 | 56 | 82 | |
| Machine dimension | mm | 2.45x1.7x2.2 | 3.75x1.85x2.2 | 4.3x2.15x2.2 | 3.2x1.9x2.2 | |
| Machine weight | ton | 4.5 | 6.5 | 7 | 8 | |
| * All Specifications and designs are subject to change without notice. * The production capacity refers to 500ml water bottles. * CMA Series model can be upgraded to fully electricity type by servo motor control. |
||||||
