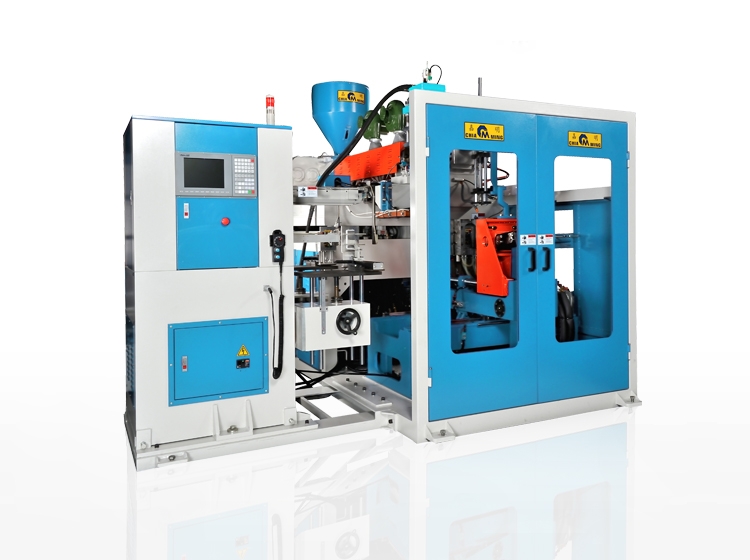

CM-IML In-Mold Labeling Machine
In-Mold Labeling Machine
CM - IML
Containers fabricated using in-mold labeling processes have a higher quality label surface and overall appearance. Typical in-mold labeling (IML) processes involve:
(1) The label is taken into the reach of the mold by means of a handling unit.(2) The label is transferred and fixed in place (vacuum, static charge) within the cavity range.
(3) The label inserted is rear blow molding inside the mold.
(4) The finished part is removed while a new label is inserted at the same time.
CM-IML Series | |
---|---|
bottle capacity | Output BPH(pcs/hr) |
<300ml | <800 |
300ml~500ml | <800 |
500ml~1L | <800 |
1L~2.5L | <600 |
2.5L~5L | <300 |
5L~10L | <100 |
10L~25L | <100 |
- Provides superior performance and enhanced efficiency.
- Labels are impermeable to moisture to minimize chances of peels and cracks.
- Printed labels are smooth and unblemished.
- Anti-counterfeit function.
Model | CM-IML | |||||
---|---|---|---|---|---|---|
Model | Material to be Used | PE/PP | ||||
Screw Diameter | mm | Ø65 | ||||
L/D Ratio | 24/1 | |||||
Screw Speed Range (PE)/rpm | rpm | 15-65 | ||||
Inverter Motor | HP | 20 | ||||
Max. Extrusive Capacity/Hour | kgs | 60 | ||||
Heating Zone (Barrel) | zone | 3 | ||||
Heating Capacity (Barrel) | kw | 10.8 | ||||
Die head | Heating Zone (Diehead) | zone | 3 | |||
Heating Capacity (Diehead) | kw | 11.9 | ||||
Double Mold Center Distance | mm | 140 | ||||
Mold Plate | Max. Opening Stroke | mm | 550 | |||
Min. Close Stroke | mm | 172 | ||||
Mold Clamping Force | ton | 7.5 | ||||
Hydraulic System | Hydraulic Pump Motor | HP | 15 | |||
Hydraulic Oil Pressure | kg/cm2 | 100 | ||||
Oil Tank Capacity | gallon | 85 | ||||
Product | Product Weight (Max.) | g | 140 | |||
Product Dia. (Min./Max.) | mm | 50-110 | ||||
Product Capacity (Min./Max.) | ml | 500-2000 | ||||
Total Power Consumption | kw | 52.6 | ||||
Weight of Machine | ton | 6 | ||||
* All Specifications and designs are subject to change without notice. * All models can be upgraded to hybrid or fully electric type by servo motor control. |
