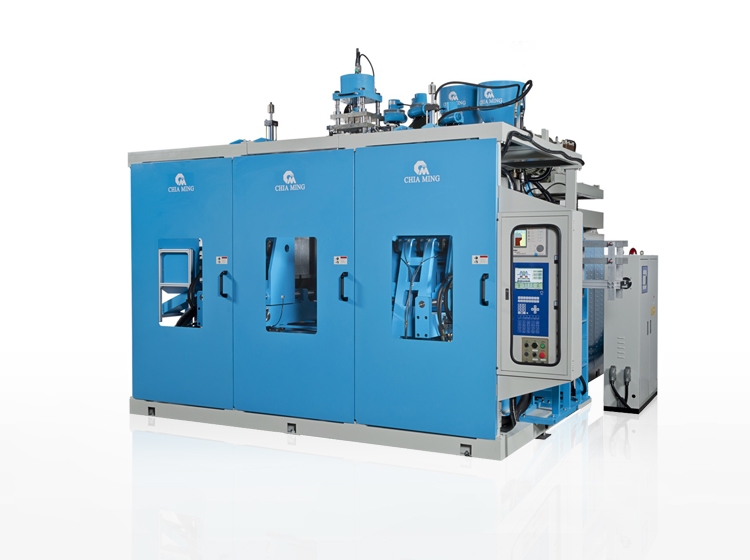

CM-L Series Continuous Extrusion Blow Molding Machine
CM-L Series - (Multi-layer / Co-Extrusion)
CM-L Series
CM-L Series multiple layers co-extrusion blow molding machine is specified for producing particular containers that are fully sealed, light resistive, heat resistive, anti-bacterial, durable, anti-static, corrosion resistive, non-toxic, etc.
CM-L Series Continuous Extrusion Blow Molding Machine | |
---|---|
Bottle Capacity | Output BPH(pcs/hr) |
<300ml | <3000 |
300ml~500ml | <3000 |
500ml~1L | <3000 |
1L~2.5L | <3000 |
2.5L~5L | <800 |
5L~10L | <800 |
10L~25L | <400 |

ADVANTAGES
1. It provides better quality monolayer extrusion coatings over a wider variety of widths and line speeds.
2. The potential to save on the number of premium resins by filling with lower-cost materials.
3. The possibility to make multi-layer, multi-functional structures in a single pass.
SIX LAYERS WALL STRUCTURE

Double Layers:
1. Combination of Layers A: Virgin - Recycled
Application:
1. Cost saving due to less virgin material use.
2. Eco-friendly due to usage of recycled material.
3. Harder and stronger containers due to double-layer structure.
2. Combination of Layers B: Natural - Colored
Application:
1. Cost saving due to fewer additives used.
2. Great application for sensitive filling (such as milk) that should not be in contact directly with material with color additives.
3 Layers:
1. Combination of Layers A: HDPE/PP – Recycled – HDPE/PP
Application:
1. Eco-friendly due to usage of recycled material.
2. Harder and stronger containers due to double-layer structure.
2. Combination of Layers B: Virgin HDPE/PP – Recycled with carbon black – Virgin HDPE/PP
Application:
1. Great application for sensitive products such as yogurt.
2. Improves storage life.
3. Combination of Layers C: Nylon –Adhesive – HDPE/PP
Application:
1. Great application for chemical pesticides and similar hazardous chemicals, corrosive products, etc.
2. Improve gas barrier properties.
4 Layers:
1. Combination of Layers A: Nylon –Adhesive – Regrind/recycled- HDPE/PP
Application:
1. Great application for chemical pesticides and similar hazardous chemicals, corrosive products, etc.
2. Improve gas barrier properties.
3. Eco-friendly due to usage of recycled material.
6 Layers:
1. Combination of Layers A: HDPE/PP – Adhesive – Barrier resin – Adhesive – Regrind – HDPE/PP
Application:
1. Much higher storage life and aroma retention.
2. Great application for automobile products.
Food Packaging
Petrochemicals & Chemical
Cleaning Supplies
Cosmetic
Medical Supplies
Other
